oto

The alert history your Prometheus stack does not keep.

oto sits behind an Alertmanager you already run and records what happens to every alert: when it first appeared, every episode since, what the rule said at that moment, who was told on which channel in which thread, who acknowledged it, and how it ended — as one replayable timeline, in a web UI and in Slack.

Self-hosted, MIT, Postgres-only. It is a flight recorder, not an incident manager.

Status: pre-release. No version has been tagged yet. The schema is stable enough to run against and migrations are expand/contract-only, but nothing here is 1.0.

Why this exists

Section titled “Why this exists”

Ask your current stack a question about last Tuesday.

  • Alertmanager keeps no history. It is a silence console with a live view. Once an alert resolves, the fact that it fired — and what the rule looked like when it did — is gone.
  • Grafana’s alert history only covers Grafana-managed rules. If your rules live in Prometheus files, you get nothing.
  • The Slack thread is the real record, and it is unqueryable. “How many times has this fired this quarter?” “Who acked it?” “Was the rule edited between episodes?” — all of that is sitting in scrollback, unaddressable.
  • Rules mutate silently. An alert that fires today with a different for: than it had last month has a history that quietly lies to you.

And the tools that would fix it are the wrong shape: Robusta’s UI is SaaS-or-enterprise, Keep is incident-first and generic, and Grafana OnCall OSS was archived in March 2026.

oto answers those four questions. It reads from your Alertmanager and writes nothing back to your cluster.

How it works, in five points

Section titled “How it works, in five points”
  1. Point one Alertmanager at oto. One webhook receiver, one per-source ingest token. Nothing else in your cluster changes; oto has no write path into it.
  2. oto gives every distinct label set a permanent identity — an Alert. It is created the first time it is seen and it is never deleted, so “has this happened before?” has an answer.
  3. Every firing episode is an AlertCase. Separate, sequential, terminal. Ack one and you have acknowledged exactly that episode, not the alert forever.
  4. At the moment it fires, oto captures the rule. Content-addressed, stored per episode. When the rule changes between episodes, rule_changed is a first-class fact, and the timeline shows the drift. Grafana, Robusta and Keep all keep the alert; none of them keep the rule text per episode.
  5. Slack is a real surface, not a notification sink. One thread per episode, the root card updated in place, ack/snooze/comment from the message — and every one of those actions lands in the same timeline the UI reads.

Routing is by label matcher to a channel, never to a person — see What oto is not.

What it looks like

Section titled “What it looks like”

The screens below are a demo org (Acme Corp) with generated data — see Try it with demo data.

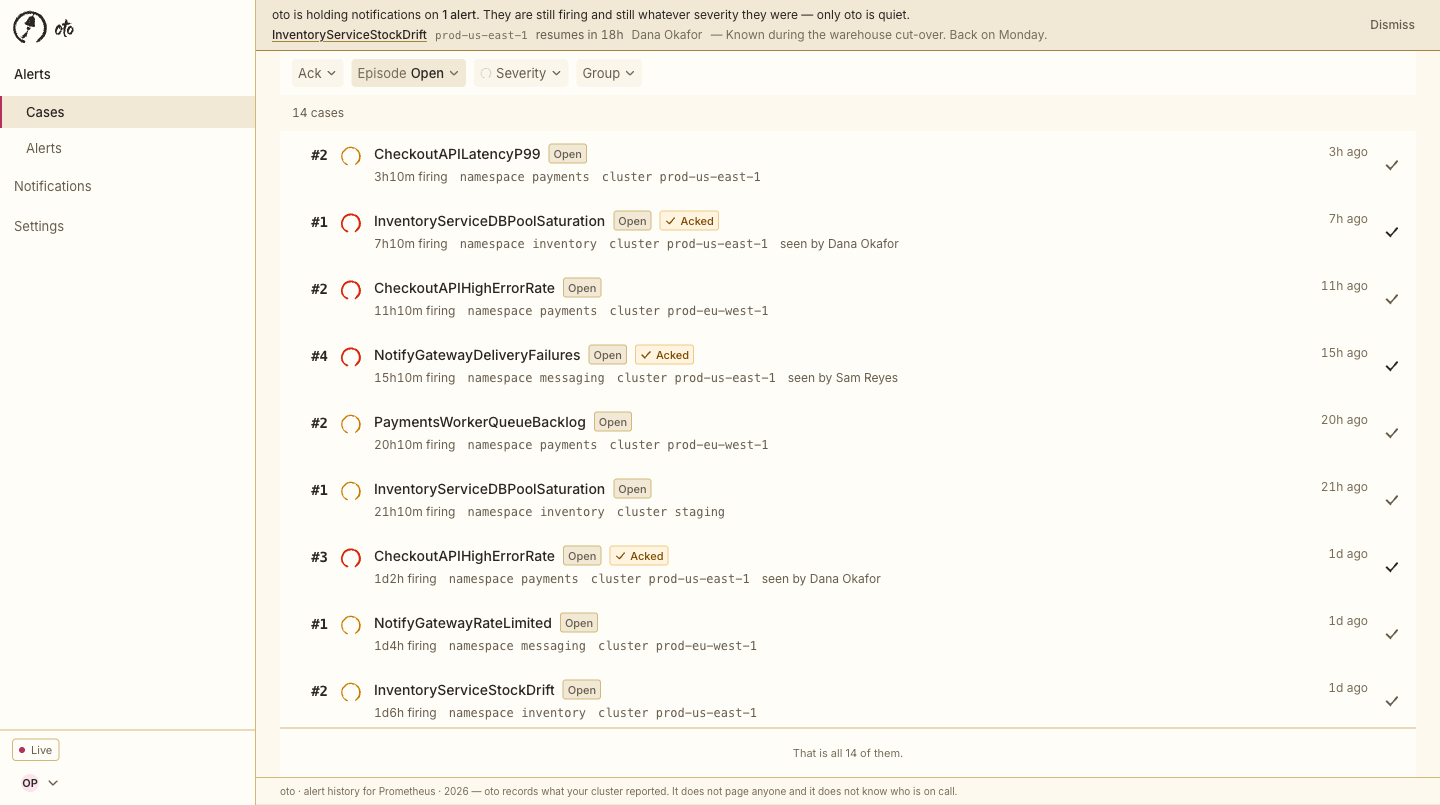

The queue. One row per firing episode, not per alert. Ack receipts carry who and when.

The case queue

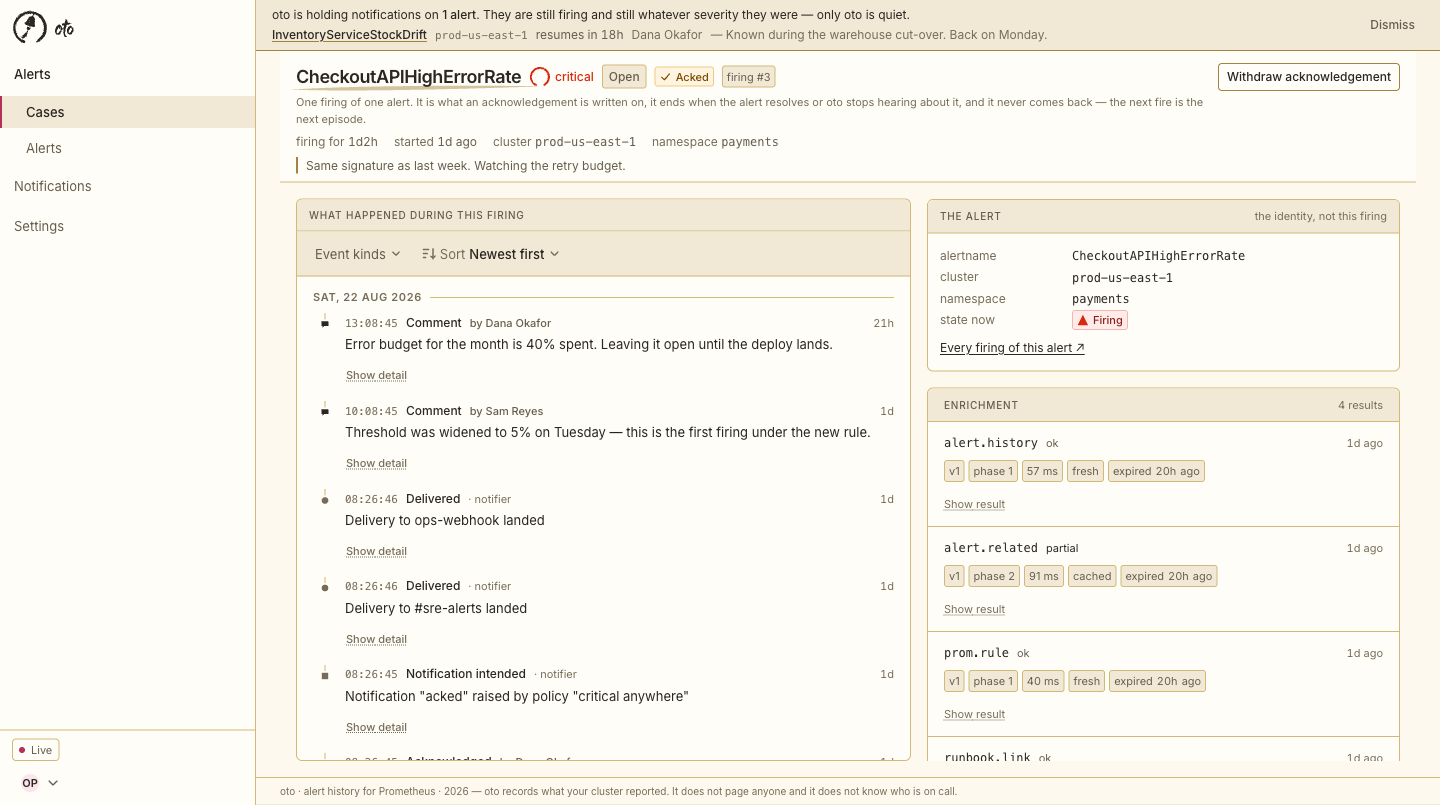

One episode, end to end. Firing duration, the rule as it read at fire time, the full append-only timeline, and every delivery that went out.

A single case in detail

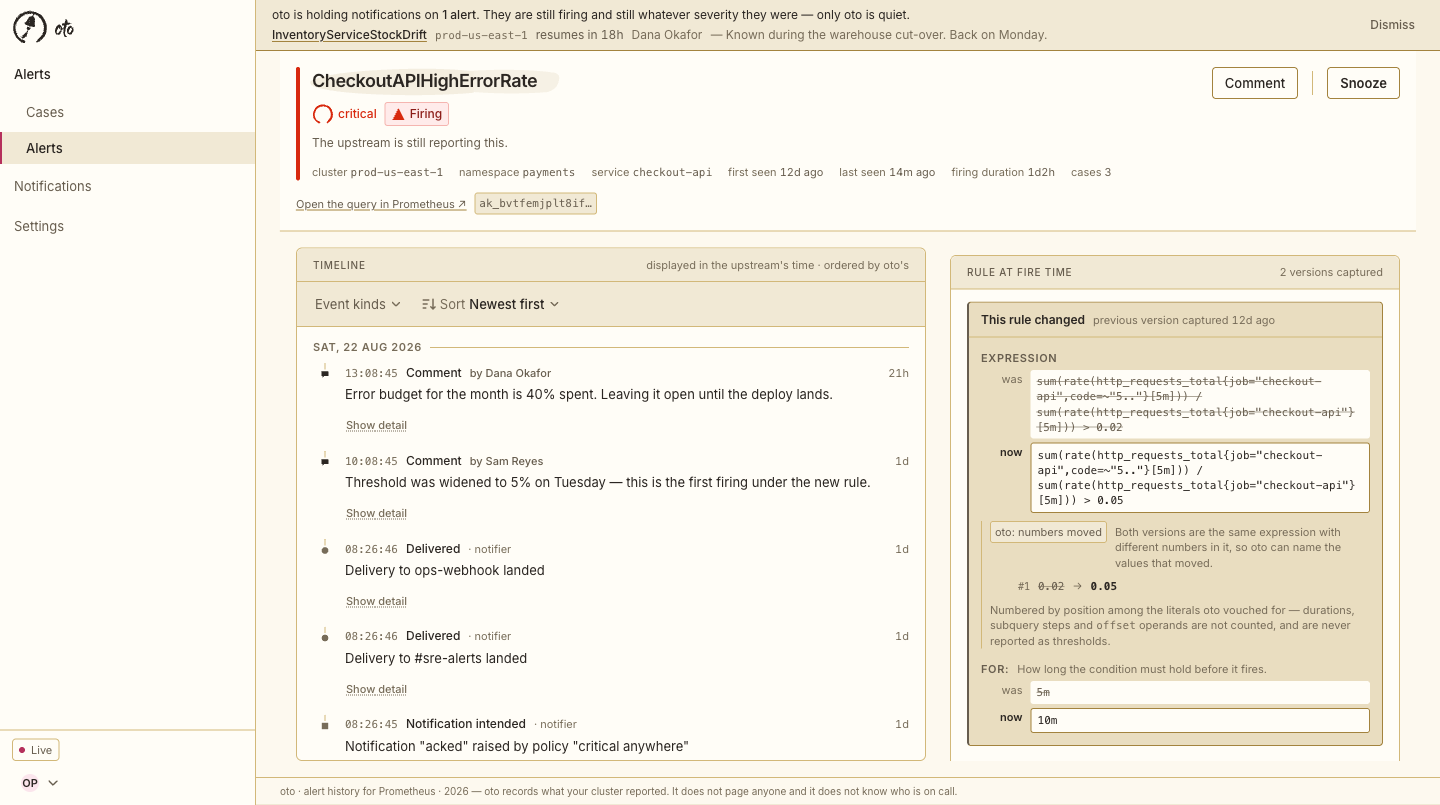

Rule drift. The same alert, two episodes, two different rules — which is the whole reason this project exists.

Alert detail showing rule drift

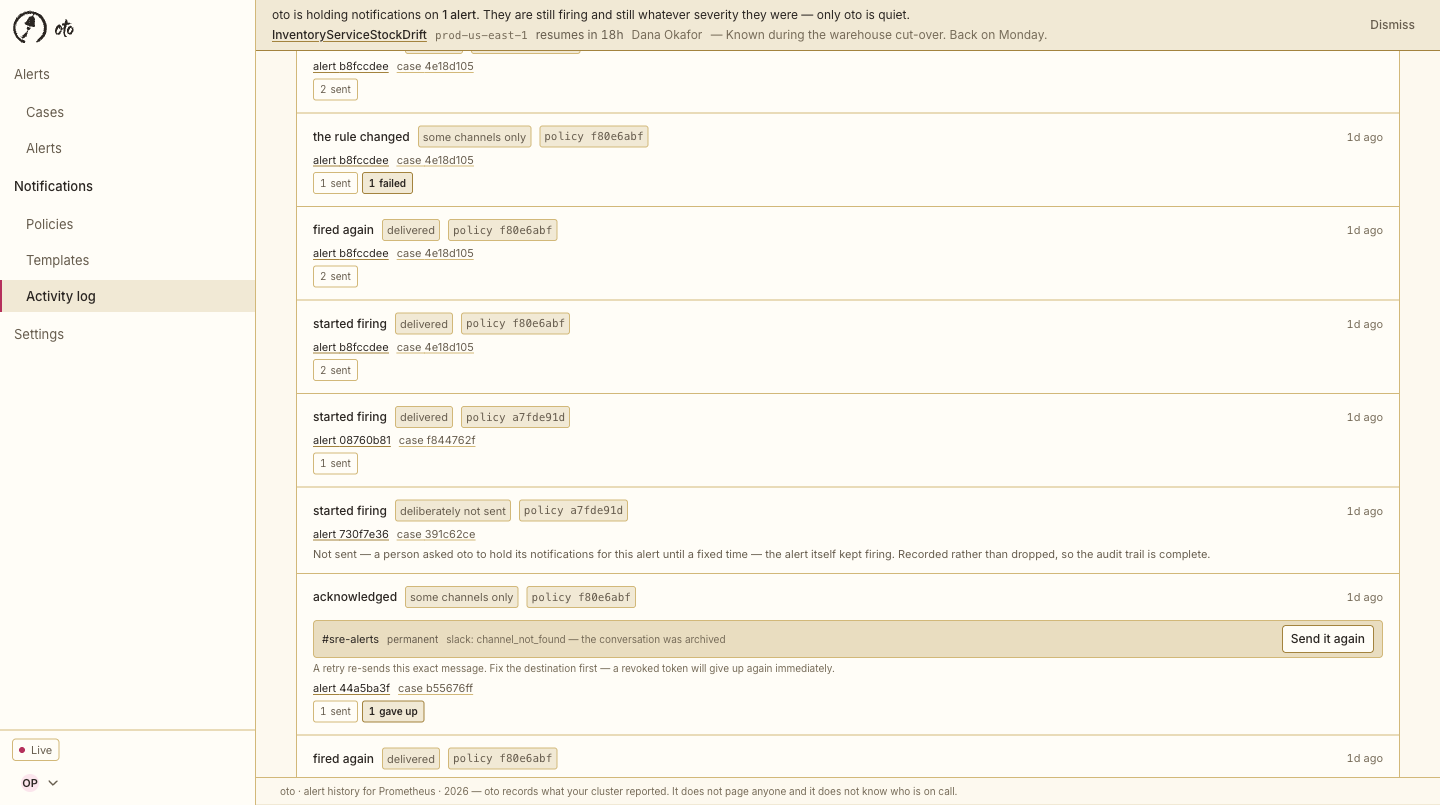

The delivery log. Who was told, where, and whether it actually arrived. Failures are visible rather than swallowed.

The notification activity log

Quick start

Section titled “Quick start”

Prerequisites: Go 1.26, Node 24, Docker, just.

Terminal window
cp .env.example .env   # the defaults already match docker-compose.yml
just setup             # go mod download, npm install, dev tooling
just infra             # postgres 17 + alertmanager + prometheus, waits for health
just migrate           # apply migrations (this runs `oto migrate`, not raw goose)


# The first org, the first user, the first token. There is no signup route and no
# org-creation API on purpose, so a freshly migrated database has no credential that
# can log in. This subcommand is the only way to make one, and it refuses to run twice.
OTO_BOOTSTRAP_PASSWORD='a long passphrase' \
  go run ./cmd/oto bootstrap --org-slug acme --email you@example.com


just up                # API on :8080, UI on :5173

Then open http://localhost:5173 and log in with that email and passphrase.
UI http://localhost:5173 — the Vite dev server, with hot reload
API http://localhost:8080 — /healthz, /readyz, /metrics, /api/v1/…
Alertmanager http://localhost:9093
Prometheus http://localhost:9090 — evaluates deploy/prometheus/oto-rules.yaml

just health curls /healthz then /readyz; /readyz touches the database, so a green there proves Postgres and the migrations too. just on its own lists every recipe.

In a deployment there is no second port. The released image serves the UI from the same origin as the API, at / — the SPA calls relative paths (/api/v1/…) and has no base-URL setting, so same-origin is the only arrangement that works. :5173 above is the dev server and exists only so that hot reload does. A binary you built yourself with go build carries no UI until just ui-build has written web/dist; it says so at / rather than 404ing, and oto version reports ui: absent or ui: embedded (N files).

bootstrap prints a personal access token once — only its sha256 is stored. Losing it is not losing API access: Settings → Access tokens mints more. Minting always requires a signed-in session, so a token can never mint or enumerate its siblings.

Who may approve a Remedy is granted from the host shell, the same way. A Remedy (ADR 0054) is approved only by a user holding the approval grant on its write ToolServer, and two different holders for a double approval. There is no grant screen and no grant route, on purpose — an in-app grant would let one holder mint a second approver:

Terminal window
go run ./cmd/oto grant  remedy-approver --org acme --toolserver k8s-write --email you@example.com
go run ./cmd/oto revoke remedy-approver --org acme --toolserver k8s-write --email you@example.com

The user is found by address; a read ToolServer, an unknown org, ToolServer or address, a disabled user, a grant already held and a revoke of one not held are each refused with a non-zero exit. A disabled user’s grant stops counting; deleting the ToolServer deletes its grants. GET /api/v1/tool-servers/{id}/remedy-approvers lists the holders, read-only.

Try it with demo data

Section titled “Try it with demo data”

A freshly migrated database is empty, and an empty oto is a set of placeholder sentences. To see the product with something in it:

Terminal window
just setup                                          # once per checkout
OTO_BOOTSTRAP_PASSWORD='a long passphrase' just demo
just up

just demo runs infra, migrations, bootstrap and the seeder in order, then prints the credentials. Log in as ops@acme.example with that passphrase.

It seeds a fictional org: three clusters, five services, 21 alert identities, 36 episodes across every state, acks with actors and notes, 94 deliveries of which some failed and two are dead-lettered, three message templates, a snoozed alert — and one alert whose rule changed between episodes, so the drift view has something real to show.

The seeder refuses to run against a production environment, and refuses to run twice. If your database already has data, just reset first — note that this destroys the dev volume.

The demo’s alert sources point at fictional hosts, so after roughly three hours oto probes them, correctly concludes it cannot reach them, and says so in a source-health banner. That is the health check working, not the demo breaking. just reset && just demo gives you a clean window again.

Seeing a real alert arrive

Section titled “Seeing a real alert arrive”

just infra also starts a Prometheus whose first rule, OtoStackSmokeTest, is deliberately always true with a 15 s for: — so within a minute http://localhost:9093 shows a card without you having to break anything. That proves Prometheus → Alertmanager.

The last hop needs two values that cannot exist before you do: the ingest route is per source (/api/v1/ingest/alertmanager/{source_id}) and authenticates with that source’s own token. Create a source in the UI, paste its webhook_url and ingest_token — returned exactly once — into deploy/alertmanager/alertmanager.yml, then docker compose restart alertmanager. That file’s header comment has the exact call. Until you do, the receiver points at an all-zero uuid that 404s on purpose, rather than at a URL that looks plausible and silently is not.

That same Prometheus is a legitimate prometheus_url for the source, which is what lets oto capture what a rule said at the moment it fired (ADR 0009).

Concepts

Section titled “Concepts”

Six nouns carry the whole model. docs/concepts.md is the full reference; this is the shape.
Alert The identity of a label set within an org and cluster. Created on first sight, never deleted.
AlertCase One contiguous firing episode, (alert_id, seq). The thing you ack.
AlertEvent One immutable fact at one instant. Append-only; current state is a projection of these.
RuleSnapshot The alerting rule, content-addressed, as it read at fire time.
NotificationPolicy Label matchers → up to 16 Channels. Evaluated in priority order, lowest first; first match wins. Targets destinations, never people.
Conversation What decides which facts share a message. One per Case, bound to one thread per Channel.
Prometheus rule fires
        │
        ▼
   Alertmanager ──── webhook + per-source ingest token ───┐
   (silenced alerts are dropped here)                     │
                                                          ▼
                        POST /api/v1/ingest/alertmanager/{source_id}
                        one transaction: durably record the raw batch and
                        enqueue the work. Slack is never on this path.
                                                          │
                                                          ▼
 Alert              the identity of a label set within (org, cluster).
   │                Born the first time it is seen. Never deleted.
   │
   └── AlertCase    one firing episode, (alert_id, seq). The thing you ack.
          │         open ──▶ closed. Terminal: a re-fire opens seq+1 and
          │         never revives the one before it.
          │
          ├── AlertEvent    one immutable fact at one instant. The timeline.
          │                 Current state is a projection of these, never
          │                 an overwrite.
          ├── RuleSnapshot  the rule, content-addressed, as it read at fire
          │                 time. Nothing else in this space keeps it.
          └── Enrichment    a typed, provenanced result from one Enricher.
                            │
       a transition happens │ and carries exactly one Reason
       (fired, acked, snoozed, rule_changed, … 15 in total)
                            ▼
 NotificationPolicy   label matchers, evaluated in priority order, LOWEST
                      FIRST, first match wins. Routes to 1..16 Channels —
                      never to a person.
                            │
                            ▼
 Notification         ONE idempotent intent to communicate that one fact
                            │
             fan out, one NotificationDelivery per Channel
                   ┌────────┴────────┐
                   ▼                 ▼
             #sre-alerts      #platform-warnings
                   └────────┬────────┘
                            ▼
 Conversation         one per Case, bound to one ChannelThread per Channel.
                      The root card is UPDATED IN PLACE; replies are gated
                      by that Channel's verbosity.
                            │
                            ▼
 A human acks, snoozes or comments
                            │
                            └──▶ appends another AlertEvent
                                 → which mints the next Notification
                                 → which updates that same root card
                                 (and the UI, live, over SSE)

An Alert is firing, suppressed, resolved or expired — and expired is not resolved. Ack state and snooze are two orthogonal axes on top of that. A human may write ack state and nothing else: there is no Resolve, Close, Merge, Dismiss or Assign, because a human does not get to overwrite what a signal said.

What oto is not

Section titled “What oto is not”

Not an incident manager, an on-call or paging system, a workflow engine, or a rule editor. Not an AI that decides who is told: an Investigator reads (oto’s own history, and MCP ToolServers you configure), proposes, and never decides delivery — its Finding changes what people read, never whether they are told (ADR 0053, setup). And no write path into your cluster but one: a Remedy an Investigator proposes, executed once through your write ToolServer and only after two different holders of the approver grant (oto grant remedy-approver, host shell only) say yes (ADR 0054, setup).

This is enforced rather than promised. tools/lintvocab fails CI on thirteen banned concept words and six forbidden column names, and notification_policies has a ChannelIDs column and no other target field — “route this to a person” cannot be expressed without editing the struct. The reasoning is in ADR 0013 and docs/design/SCOPE-BOUNDARY.md, which adjudicates 32 feature requests one by one.

Layout

Section titled “Layout”
cmd/oto/           the binary: server, worker, operational subcommands
internal/app/      explicit constructor wiring; the dependency graph is readable
internal/platform/ config, log, telemetry, db, httpx, jobs, errs, id, clock
internal/<domain>/ api / service / repository / domain — see CONTEXT.md
db/migrations/     goose SQL, expand/contract only
api/openapi/       the contract; the TS client and validators are generated from it
web/               Vite 6 + SolidJS + TypeScript strict + Tailwind v4
deploy/            alertmanager and prometheus configs, the Slack app manifest
deploy/helm/oto/   API + worker Deployments, `oto migrate` as a pre-upgrade hook.
                   Postgres is EXTERNAL — no subchart, by decision (ADR 0014)
docs/              concepts, ADRs, the binding spec, setup guides, metric runbooks
test/harness/      real Postgres via testcontainers; fakes for the four true externals
test/contract/     the drift gates between Go, OpenAPI and the TS client
test/load/         burst cases behind `//go:build load`; CI does not run them
tools/lintvocab/   the scope-boundary linter

Stack: Go 1.26 (chi, pgx, River for jobs), Postgres 17 as the only datastore, SolidJS on the front end, Slack as the primary channel. No analytical store, no stream processor, no Postgres subchart — see ADRs 0001 and 0014.

Section titled “Where to read next”
docs/concepts.md The domain model in full: every noun, the state machines, worked examples. Start here.
CONTEXT.md Implementer’s map: domain language, module map, layering rules.
CONTRIBUTING.md Setup, the task runner, what each gate catches, how to read a red one.
docs/setup/configuration.md Every environment variable, its default, and whether it is required.
docs/setup/slack.md Connecting a workspace, and what to do about every Slack error oto classifies.
docs/setup/tuning.md resolve_grace, flap thresholds, retention windows, and how to derive each from your own rules.
docs/runbooks/ One page per oto_* metric: what it counts, what a sustained value means, what to do.
docs/releasing.md Cutting a tag, what the pipeline publishes to GHCR, and the one step it cannot do for you.
docs/design/SPEC.md The binding specification. It changes only through an ADR in the same commit.
docs/adr/ Every decision and what superseded it — 50 of them, starting with ADR 0001.

Licence

Section titled “Licence”

MIT — see LICENSE and ADR 0019. No ee/ directory, no feature behind a licence key, no CLA.

Issues live in the repository itself via git-bug: git-bug bug lists them, git-bug bug new files one.
